1. What is OWASP?

OWASP (Open Worldwide Application Security Project) is a global nonprofit organization focused on improving software security.

Most famous for:

• OWASP Top 10 (Top web application security risks)
• Security testing standards
• Threat modeling guidance
• Secure coding practices
• API Security Top 10

---

2. What is OWASP Used For?

OWASP is used to:

• Identify common vulnerabilities
• Build secure applications
• Design secure architectures
• Perform security audits
• Train developers
• Improve DevSecOps practices

---

3. OWASP Top 10 (Service-Level Risks)

Here are the most critical risks affecting APIs and microservices:

Risk	What It Means	Example
Broken Access Control	Unauthorized access	User accesses admin endpoint
Broken Authentication	Weak login/session	JWT not validated
Injection	SQL/Command injection	Raw SQL input
Security Misconfiguration	Default configs exposed	Open S3 bucket
Cryptographic Failures	No encryption	Passwords in plain text
Insecure Design	No threat modeling	No rate limiting
Logging Failures	No monitoring	Brute-force undetected

---

4. Why OWASP is Important for Services (Microservices/API)

Modern systems are:

• Cloud-native
• API-first
• Microservice-based
• Token-based (JWT)
• Deployed in Kubernetes

Without OWASP controls:

❌ Tokens can be forged
❌ APIs can be abused
❌ Sensitive data can leak
❌ Admin endpoints can be accessed

OWASP provides structured defense strategy.

---

5. Business Use Case

Case: FinTech Payment Platform

Business Requirements:

• Secure login
• Protect payment APIs
• Prevent fraud
• Ensure compliance (PCI DSS)
• Monitor abnormal behavior

OWASP Implementation:

OWASP Control	Business Benefit
Rate limiting	Prevent DDoS
JWT validation	Stop token forgery
Role-based access	Prevent privilege escalation
Encryption (TLS)	Protect card data
Logging & alerts	Detect fraud attempts
Secure headers	Prevent XSS

---

6. OWASP-Based Service Security Architecture

Here is the architecture image for OWASP-based service security:

👉 The architecture includes:

• Internet
• Web Application Firewall (WAF)
• API Gateway
• Authentication Service
• Microservices
• Database
• Logging & Monitoring
• Security controls layer

What is ASP.NET Core Identity?

ASP.NET Core Identity is a membership system that provides:

• User registration
• Password hashing
• Login / Logout
• Role management
• Claims-based authorization
• MFA (Multi-Factor Authentication)
• Account lockout
• Security stamp validation

It is primarily for authentication and user management inside your application.

It does NOT itself provide token-based API security unless integrated with OAuth2/OIDC providers like:

• OpenIddict
• IdentityServer
• Azure AD
• Auth0

---

2. Core Security Concepts (Enterprise View)

A) Authentication vs Authorization

Concept	Meaning	Example
Authentication	Who are you?	Login with username/password
Authorization	What can you access?	Admin dashboard vs user dashboard

ASP.NET Core Identity handles both using:

• Claims
• Roles
• Policies

---

B) OWASP Security Principles (Very Important)

OWASP defines top security risks like:

• Broken authentication
• Broken access control
• Security misconfiguration
• Injection attacks
• Sensitive data exposure

When implementing Identity in real systems, we must:

• Hash passwords using PBKDF2
• Use HTTPS only
• Use Anti-forgery tokens
• Enable Account Lockout
• Implement password policy
• Secure cookies
• Rotate tokens
• Validate JWT signature

---

3. High-Level Architecture Overview

Scenario: E-commerce Platform with API + Microservices

[Client Browser / Mobile App]
            |
            v
[API Gateway]
            |
            v
[Identity Server (ASP.NET Core Identity + OpenIddict)]
            |
            v
[User DB]
            |
            v
[Microservices]
  - Order Service
  - Payment Service
  - Product Service

---

4. Authentication Flow (OAuth2 + OIDC)

1. User logs in.
2. Identity verifies credentials.
3. Identity issues:
   • Access Token (JWT)
   • Refresh Token
4. Client sends JWT to API.
5. API validates:
   • Signature
   • Expiration
   • Claims
6. API authorizes based on role/policy.

---

5. Detailed Architecture Components

a) Identity Layer

• ASP.NET Core Identity
• EF Core (User store)
• Password hashing
• Role management
• Claims management

b) Authorization Server (OIDC)

OpenIddict

Handles:

• Token issuing
• Client validation
• OAuth2 flows:
  • Authorization Code
  • Client Credentials
  • Refresh Token

---

c) Resource Server (Protected APIs)

Uses:

builder.Services.AddAuthentication("Bearer")
    .AddJwtBearer(options =>
    {
        options.Authority = "https://identity.myapp.com";
        options.Audience = "api";
    });

This ensures:

• Only valid tokens can access API
• Expired tokens are rejected
• Tampered tokens are rejected

---

6) Authorization Strategies

A) Role-Based Access Control (RBAC)

[Authorize(Roles = "Admin")]

Used when:

• Simple permission model
• Clear user hierarchy

Example:

• Admin
• Manager
• Customer

---

B) Policy-Based Authorization (Recommended)

[Authorize(Policy = "CanManageOrders")]

Defined as:

options.AddPolicy("CanManageOrders", policy =>
    policy.RequireClaim("Permission", "Order.Write"));

Used in:

• Enterprise SaaS
• Multi-tenant systems
• Complex permissions

---

7) Business Use Case (Real-Time Enterprise Example)

Case: FinTech Payment Platform

Requirements:

• Customers login
• Admin manage transactions
• External partner API integration
• Mobile app authentication
• Token-based API security

Solution:

Layer	Technology
Identity	ASP.NET Core Identity
Token Service	OpenIddict
API Protection	JWT Bearer
Database	SQL Server
Frontend	React
Mobile	Flutter

Security Features:

• MFA for Admin
• Short-lived Access Tokens (5 min)
• Refresh Tokens rotation
• Account Lockout after 5 attempts
• Role + Policy authorization
• Audit logging

---

8) Microservices Security Pattern

Recommended Pattern:

Central Identity Server
        |
        v
JWT issued
        |
        v
Microservices validate token locally

Why?

• Stateless validation
• No DB call needed per request
• Scales easily
• Works with Kubernetes / EKS

Since you work with EKS and DevOps pipelines, this pattern is ideal for:

• Kubernetes
• API Gateway
• Cloud-native architecture

---

8) Zero Trust Security Model

Modern architecture follows:

• Never trust
• Always verify
• Validate every request

Every microservice validates:

• JWT signature
• Issuer
• Audience
• Expiration
• Required claims

---

9) Security Hardening Checklist (Production)

✔ Enforce HTTPS
✔ Secure cookies (HttpOnly, SameSite)
✔ Implement CORS correctly
✔ Use Data Protection API
✔ Encrypt connection strings
✔ Enable ASP.NET Core Rate Limiting
✔ Enable logging & monitoring
✔ Use secrets manager
✔ Rotate signing keys
✔ Use separate DB for Identity

---

10) Enterprise Architecture Diagram (Textual Overview)

                    Internet
                       |
                [ Cloud Load Balancer ]
                       |
                [ API Gateway ]
                       |
         --------------------------------
         |                              |
[ Identity Server ]           [ Resource APIs ]
         |                              |
   [ Identity DB ]               [ App Databases ]

---

a) When Should You Use ASP.NET Core Identity?

Use it when:

• You build your own authentication system
• You need full control over user store
• You need custom claims
• You build SaaS applications
• You need RBAC/Policy support
• You need OAuth2/OIDC integration

---

SECTION 3: OVERVIEW of OAuth2

---

OAuth 2.0 – Complete Explanation with Business Use Case

1. What is OAuth 2.0?

OAuth 2.0 is an authorization framework that allows applications to obtain limited access to user resources without sharing passwords.

Core Idea:

“Grant access using tokens instead of credentials.”

Instead of:

• Sharing username/password

OAuth2 uses:

• Access Tokens (JWT or opaque token)

---

2. Why OAuth2 Was Created

Traditional architecture problem:

• Applications store user passwords.
• Multiple systems need access.
• Security risk increases.
• Hard to manage revocation.

OAuth2 solves:

• Delegated access
• Token-based authorization
• Centralized security
• Scoped permissions
• Secure API communication

---

3. Key Components in OAuth2

Role	Description
Resource Owner	User
Client	Web/Mobile app
Authorization Server	Issues tokens
Resource Server	Protected API

---

4. How OAuth2 Works (Authorization Code Flow – Simplified)

Step-by-step:

1. User clicks Login.
2. Client redirects user to Authorization Server.
3. User authenticates.
4. Authorization Server returns Authorization Code.
5. Client exchanges code for:
   • Access Token
   • Refresh Token (optional)
6. Client calls API with Access Token.
7. API validates token and grants access.

---

5. What is an Access Token?

• Short-lived
• Represents user permissions
• Contains scopes
• Sent in:

Authorization: Bearer <token>

---

6. What Are Scopes?

Scopes define what access is allowed.

Examples:

• read:orders
• write:payments
• profile
• email

Scopes prevent over-privileged access.

---

7 Major OAuth2 Flows (Grant Types)

1. Authorization Code (Most Secure – Web Apps)

Used for:

• Web apps
• SPA + backend

2. Authorization Code + PKCE

Used for:

• Mobile apps
• SPAs (recommended)

3.Client Credentials

Used for:

• Service-to-service
• Microservices

4. Refresh Token

Used for:

• Long-lived sessions

OpenID Connect (OIDC) – Complete Explanation with Business Use Case

What is OIDC?

OpenID Connect (OIDC) is an authentication protocol built on top of OAuth 2.0.

If OAuth2 answers:

“What can this application access?”

OIDC answers:

“Who is the user?”

---

2. Why OIDC Was Created

OAuth2 only provides authorization (access delegation).

It does NOT:

• Prove user identity
• Provide login standard
• Return user profile information

OIDC extends OAuth2 by adding:

• ID Token (JWT)
• UserInfo endpoint
• Standard identity claims
• Single Sign-On (SSO)

---

3. What is an ID Token?

OIDC introduces a new token:

🔐 ID Token (JWT)

It contains:

• sub → User ID
• name
• email
• iss → Issuer
• aud → Audience
• exp → Expiration

This token proves:

The user has authenticated successfully.

Core Components in OIDC

Role	Description
End User	Human logging in
Client	Web/Mobile App
Identity Provider (IdP)	Authenticates user
Resource Server	Protected API

---

5. How OIDC Works (Authorization Code + PKCE Flow)

Step-by-step Flow

1. User clicks login.
2. App redirects to Identity Provider.
3. User authenticates (password/MFA).
4. Identity Provider returns:
   • ID Token (identity)
   • Access Token (API access)
5. App validates ID Token.
6. User is logged in.
7. Access Token is used to call APIs.

OWASP Top 10 Vulnerabilities (2026 Edition)

OWASP (Open Web Application Security Project) publishes the OWASP Top 10 — a globally recognized awareness document for developers and security teams outlining the most critical web application security risks.

These are especially important for you as an AWS Solution Architect / .NET architect, since they directly impact API security, cloud-native applications, and microservices.

---

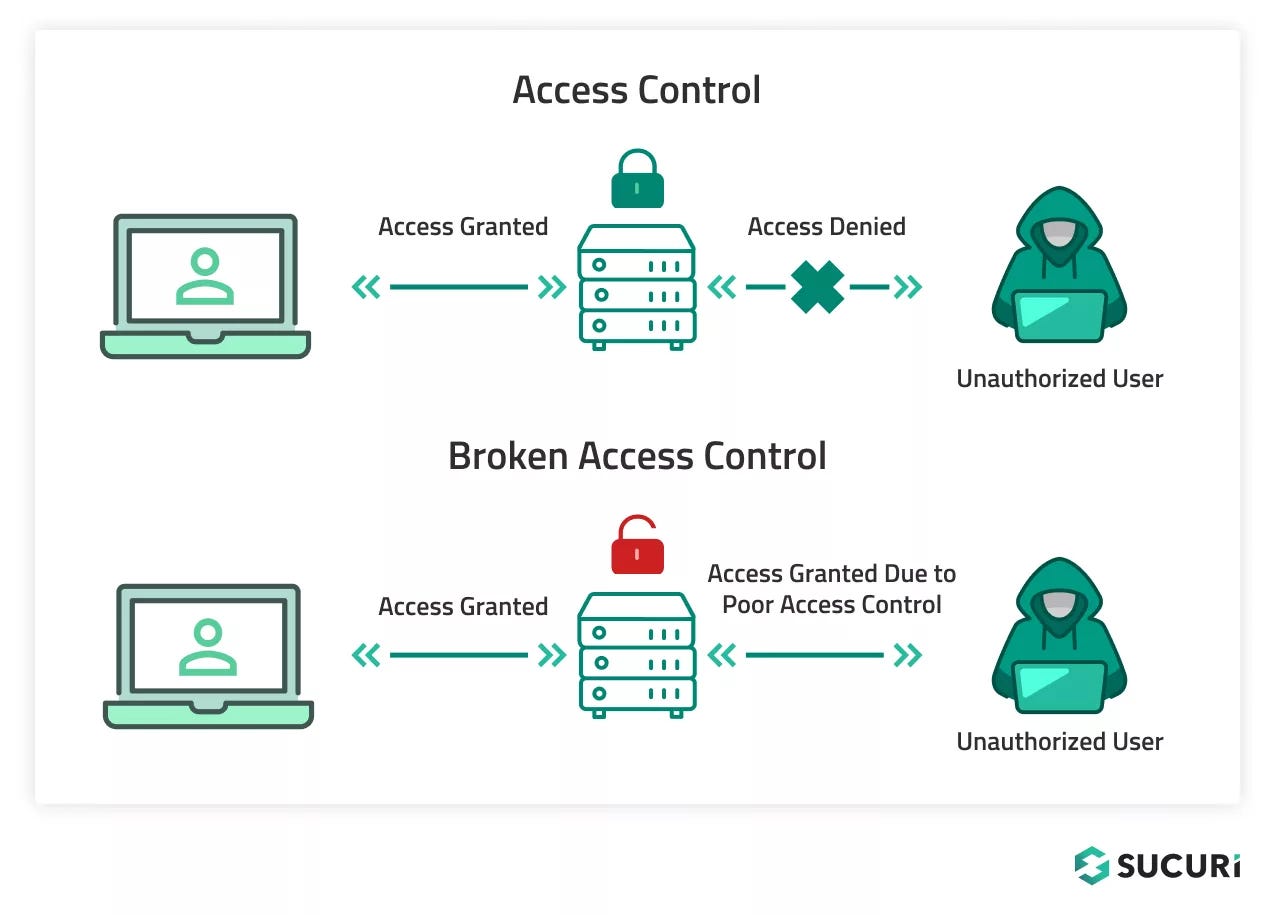

1️⃣ Broken Access Control

4

🔎 What It Means

Users can access data or functionality they should not have access to.

🔥 Examples

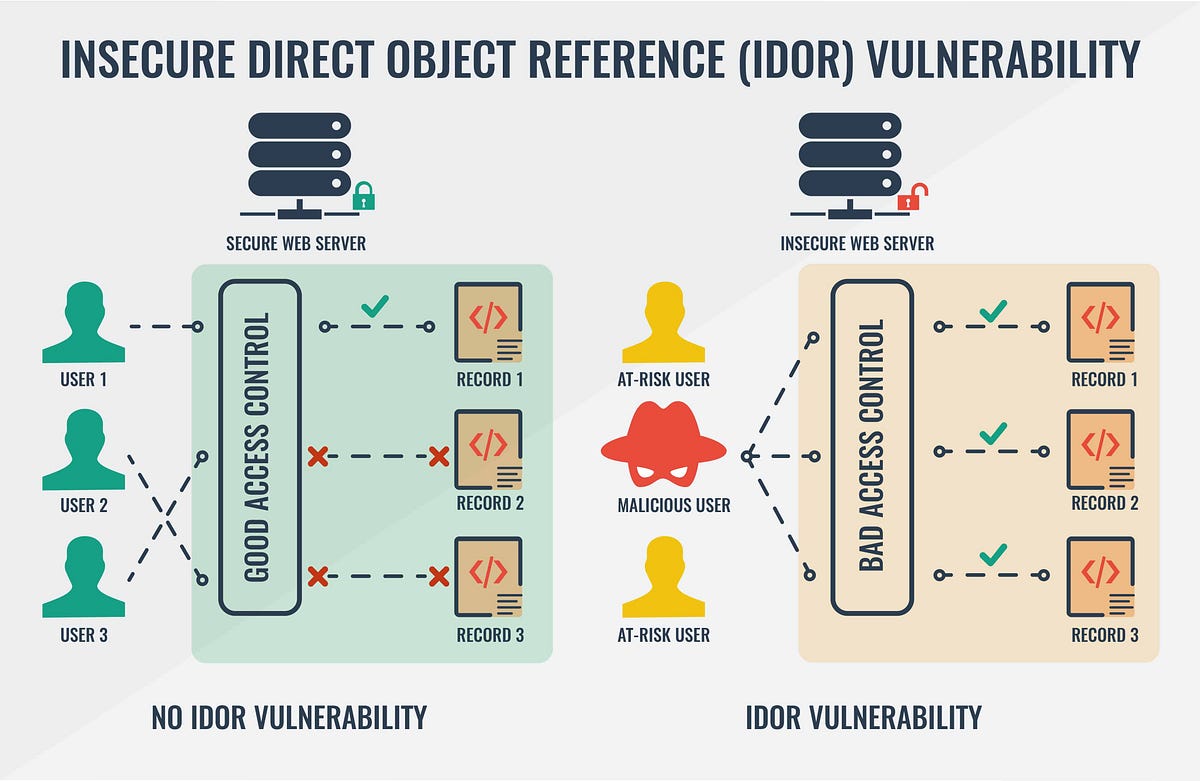

• IDOR (Insecure Direct Object Reference)
• Accessing /api/admin/users as a normal user
• Horizontal privilege escalation

🏢 Business Impact

• Data breach
• Unauthorized transactions
• Regulatory fines (GDPR, PCI-DSS)

🛠 Mitigation (.NET Example)

• Use [Authorize(Roles="Admin")]
• Implement policy-based authorization
• Validate access at controller + service layer
• Avoid trusting client-side checks

---

2️⃣ Cryptographic Failures

4

🔎 What It Means

Sensitive data exposed due to weak or missing encryption.

🔥 Examples

• Storing passwords in plain text
• Using HTTP instead of HTTPS
• Weak hashing like MD5

🏢 Business Impact

• Credential theft
• Financial fraud
• Compliance failure

🛠 Mitigation

• Use TLS 1.2+
• Hash passwords with PBKDF2 / BCrypt
• Enable encryption at rest (AWS KMS + RDS)
• Avoid custom crypto

---

3️⃣ Injection

4

🔎 What It Means

Untrusted input sent to interpreter (SQL, NoSQL, OS commands).

🔥 Examples

SELECT * FROM Users WHERE Username = 'admin' OR 1=1;

• SQL Injection
• XSS
• Command Injection

🏢 Business Impact

• Full database compromise
• Remote code execution

🛠 Mitigation

• Use parameterized queries (EF Core)
• Input validation
• Output encoding
• Use ORM properly

---

4️⃣ Insecure Design

🔎 What It Means

Architectural-level security flaws.

🔥 Examples

• No rate limiting
• No fraud detection
• Weak password policy

🏢 Business Impact

• Logic abuse
• Business logic exploitation

🛠 Mitigation

• Threat modeling
• Secure SDLC
• Rate limiting (API Gateway / ASP.NET middleware)

---

5️⃣ Security Misconfiguration

4

🔎 What It Means

Improperly configured systems.

🔥 Examples

• Public S3 bucket
• Debug mode enabled in production
• Missing security headers

🏢 Business Impact

• Data exposure
• System compromise

🛠 Mitigation

• Harden servers
• Disable default accounts
• Enable security headers
• Use IaC scanning (Terraform Checkov)

---

6️⃣ Vulnerable and Outdated Components

🔎 What It Means

Using libraries with known vulnerabilities.

🔥 Examples

• Old Log4j
• Deprecated NuGet packages

🛠 Mitigation

• Dependabot
• dotnet list package --vulnerable
• Container scanning (Trivy)

---

7️⃣ Identification and Authentication Failures

4

🔎 What It Means

Weak login/session management.

🔥 Examples

• No MFA
• Session ID in URL
• Weak password policy

🛠 Mitigation

• ASP.NET Core Identity
• MFA
• Short session timeout
• OAuth2 + OpenID Connect

---

8️⃣ Software and Data Integrity Failures

🔎 What It Means

Untrusted updates or CI/CD pipeline compromise.

🔥 Examples

• Malicious npm package
• Tampered Docker image

🛠 Mitigation

• Signed packages
• CI/CD pipeline security
• Artifact validation

---

9️⃣ Security Logging and Monitoring Failures

🔎 What It Means

No visibility into attacks.

🔥 Examples

• No login failure logs
• No alerting

🛠 Mitigation

• Central logging (ELK, CloudWatch)
• SIEM integration
• Audit trail enabled

---

🔟 Server-Side Request Forgery (SSRF)

4

🔎 What It Means

Attacker tricks server into calling internal services.

🔥 Example

http://169.254.169.254/latest/meta-data/

🛠 Mitigation

• Disable unnecessary URL fetch
• Block internal IP ranges
• Use IMDSv2 (AWS)
